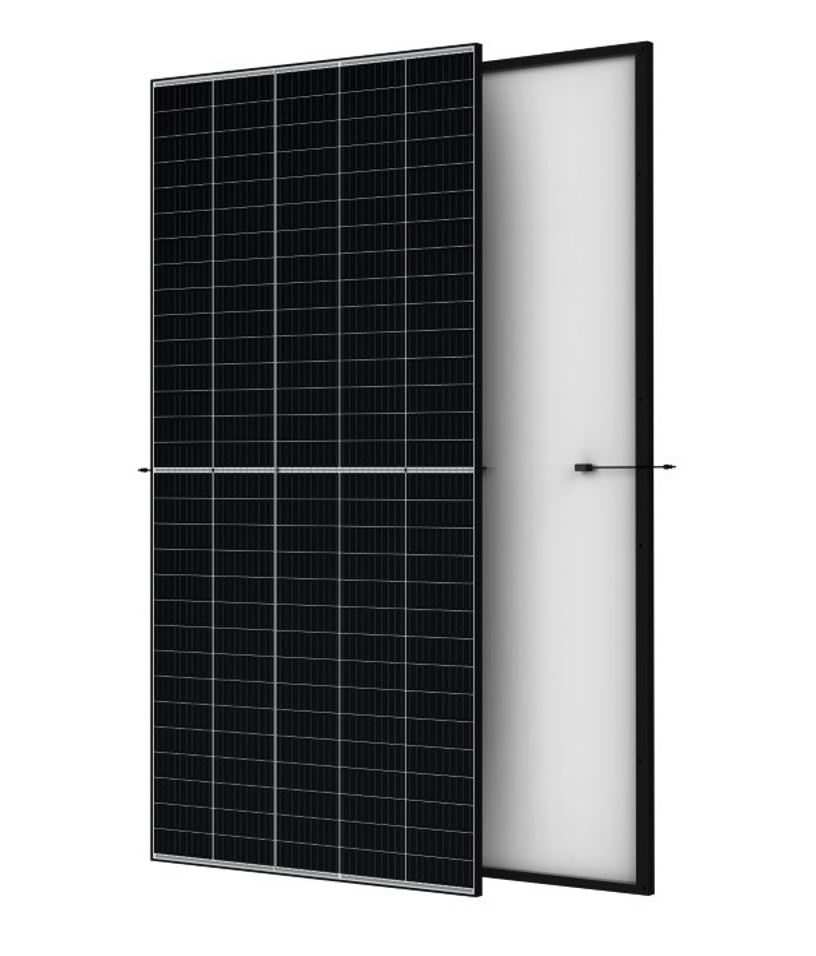

TRINA SOLAR TSM-505DE18M.08 Vertex

https://www.autoconsumosolar.es/web/image/product.template/23078/image_1920?unique=d3aeb29

148,47 € 148.47 EUR 148,47 €

212,87 €

Not Available For Sale

This combination does not exist.

Contact Us

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Product Description

Incluido cable (aprox.140 cm) y sistema de conectores TS4 Robusto marco negro de aluminio anodizado Células solares de alta calidad Versión con 10 busbars
Battery Connection ac
Temperature Coefficient Isc 0.04
Temperature Coefficient Pmpp -0.34
Temperature Coefficient Uoc -0.25
Current Shortcircuit isc 12.35
Nominal Current Impedance 11.75
Panel Cells Accross 5
Panel Cells Accross Height 30
Packaging Material cardboard box
Power Nominal Pmax 505.0
Panel Cell Depth 210.0
Panel Cell Type mono
Panel Connector Type ts4
Panel Frame Type std
Power Tolerance +5 Wp
Open Circuit Current Uoc 51,90
System Maximum Current 1500
Nominal Current Umpp 43,00
Product Manufacturer Trina Solar
Factory Reference TSM-505DE18M.08(II)
Certification 1 IEC/TÜV
Certification 2 Protection Class 2
Backsheet Color white
Frame Color black
Panel Cell Length 70.0
Panel Cable Length 140.0
Length 2187.0
Height 35.0
Depth 1102.0
Palets per Contener 20
Units per Contener 620
Units per Palets 31
Product Warranty 15
Product Performance Guaranteed 25
