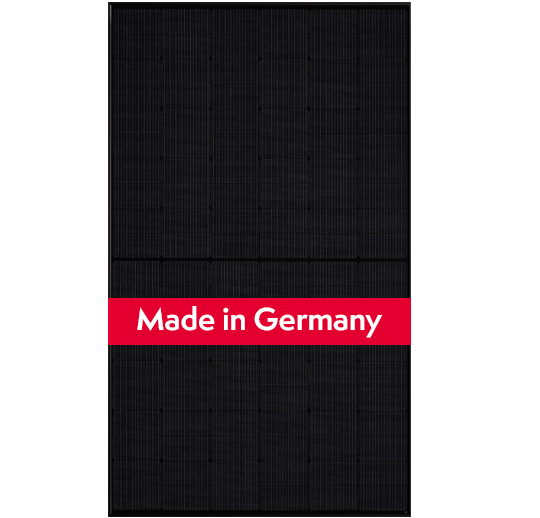

Meyer Burger Black 390



Meyer Burger Black 390

163,80 € 163.8 EUR 163,80 €

199,00 €

Marca

This combination does not exist.

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Battery Connection	ac
Temperature Coefficient Isc	0.033
Temperature Coefficient Pmpp	-0.259
Temperature Coefficient Uoc	-0.234
Current Shortcircuit isc	10.7
Nominal Current Impedance	10.1
Panel Cells Accross	6
Panel Cells Accross Height	20
Power Nominal Pmax	385.0
Panel Cell Depth	166.0
Panel Cell Type	hybrid
Panel Connector Type	mc4
Panel Frame Type	std
Power Tolerance	+5 Wp
Open Circuit Current Uoc	44,60
System Maximum Current	1000
Nominal Current Umpp	38,40

Product Manufacturer	Meyer Burger (Industries) GmbH
Factory Reference	10301298-10303933-B1
Certification 1	IEC/TÜV
Certification 2	Protection Class 2
Backsheet Color	black
Frame Color	black
Panel Cell Length	83.0
Panel Cable Length	120.0

Length	1767.0
Width	1041.0
Height	35.0
Depth	1041.0
Palet Weight	650.0

Palet Dimensions	1780x1050x1300
Palets per Contener	28
Units per Contener	840
Units per Palets	30

Product Warranty	25
Product Performance Guaranteed	25
